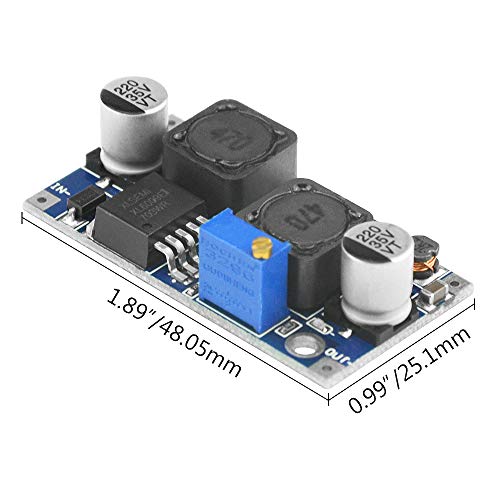

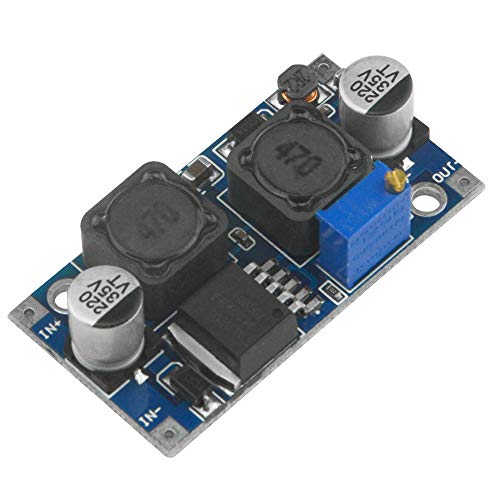

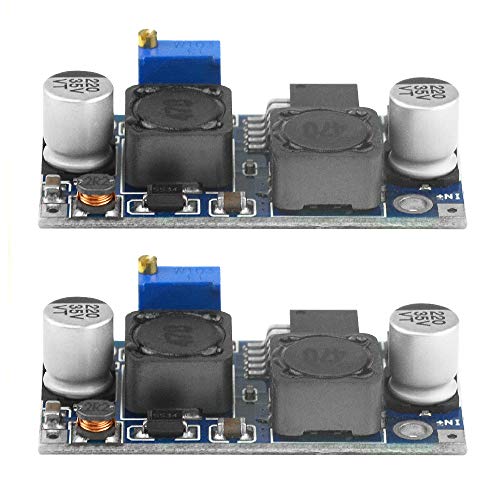

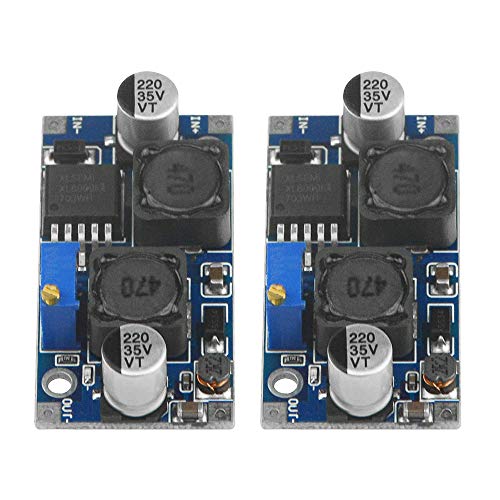

More information about XINGYHENG 5Pcs XL6009 DC-DC Buck Boost Voltage Converter Power Module 4A 400KHz Adjustable Switch Module 3.8-30V to 1.25-35V Power Supply Module for Solar Panel

Super material: It is made of electronic accessories, nickel plating on surface(anti-oxidatioan), inner conductor: pure copper. It is long lasting and rugged for you to use.

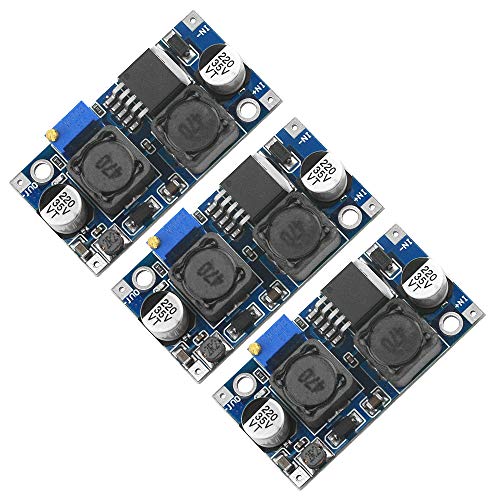

Package including: 10 Pack of XL6009 DC module, which consist of high-precision potentiometer (clockwise boost, counterclockwise buck), high frequency filter capacitor and power indicator.
Input and output: Input range: 3.8V ~ 32V.Output range: 1.25V ~ 35V.Input current: 3A (maximum), no-load 18mA (5V input, 8V output, no-load less than 18mA. The higher the voltage, the larger the no-load current.).Conversion efficiency: <94% (the greater the pressure difference, the lower the efficiency).Switching frequency: 400KHz. Output ripple: 50mV (higher voltage, larger current, larger ripple)
Feature: High efficiency and low ripple with power indicator. In addition to the current limiting and voltage regulation step-down function. High reliability, solid vibration resistance, good electromechanical performance.
A wide range of applications: This module can be applied to the buck field where the input voltage is higher than the output voltage, such as battery, power transformer, DIY adjustable power supply, and so on. Maintain stable output voltage and limit the output current over a range of input voltages. Used forbooster voltage stabilizer power supply, DIY adjustable mobile power supply, booster charger.
